Description

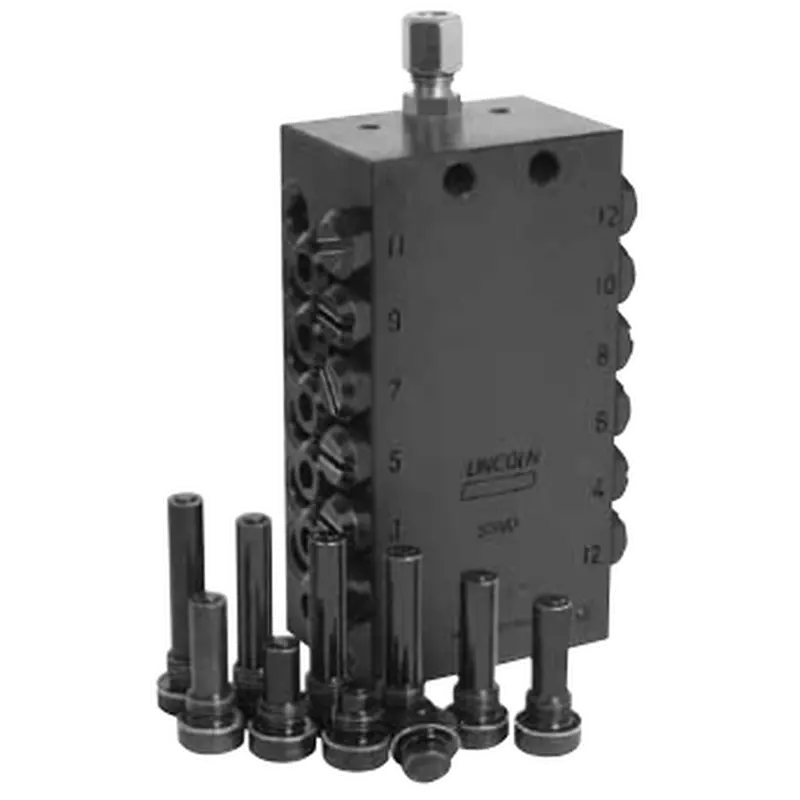

Lincoln Metering Device W/ Combined Outlets
For added installation flexibility, outlets 1 and 2 can singled together. In this configuration, outlets #1 and #2 are internally connected thus doubling the output through one output port.
| Model No. | 649-29631-1 |
| Construction Material | Carbon Steel |
| Max. Operating Pressure | 5076 psig/350 bar |
| Output/Outlet Pair/Stroke | Min. .0049/.08/Max. .110/1.8 |
| Lubricant Inlet | 1/8″ NPTF (f) |
| Operating Temperature | -13°F to 158°F |
| Description | NPT SSVD 16/15-V1-A |
| Maximum Number of Outlets | 15 |
| Cycle Indicator Pin | No |
| Number of Required Metering Screws | 8 |
